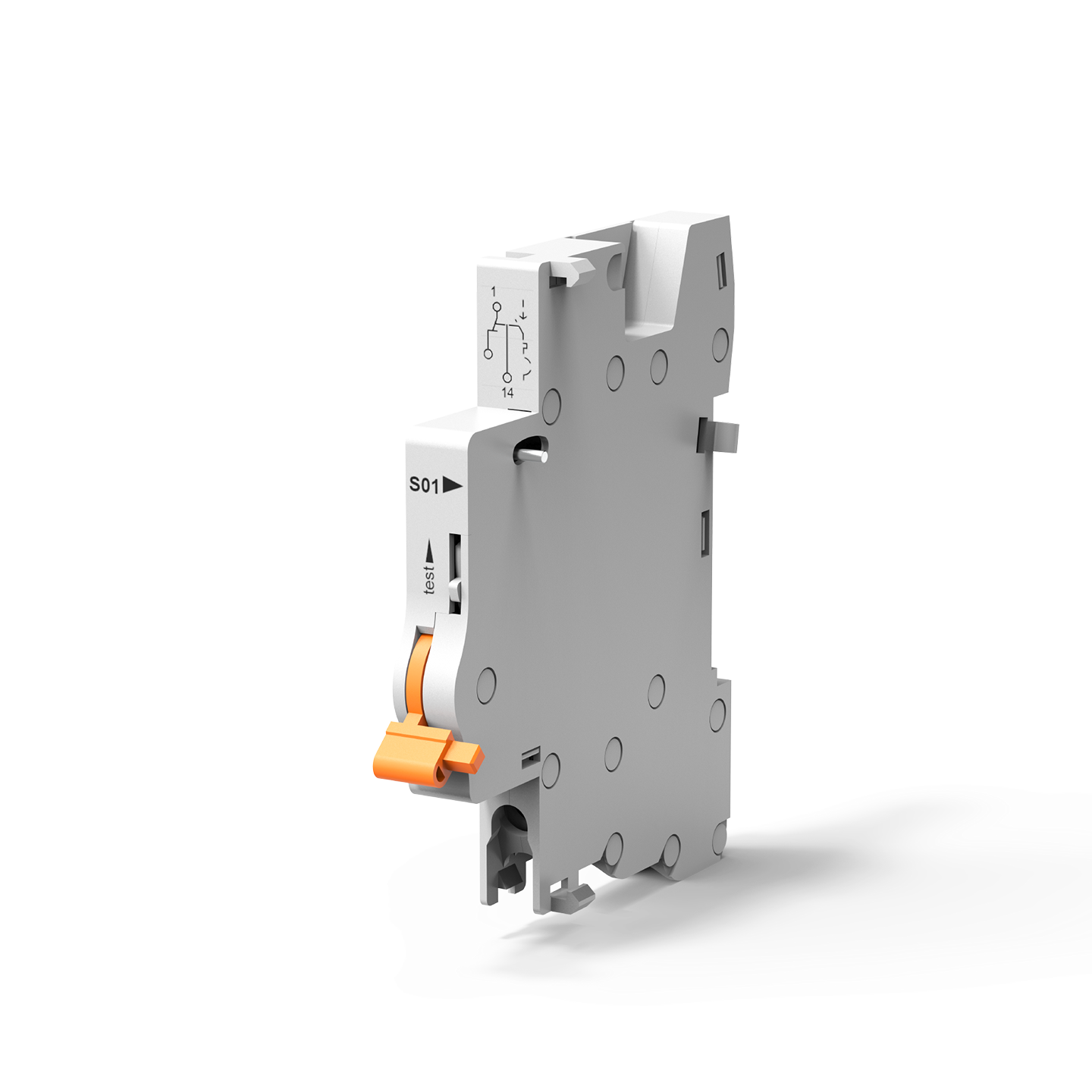

Type X4230-S
~ 9 mm
Description
The X4230-S auxiliary switch has a change-over contact as signal contact and is actuated via the circuit breaker. Unlike the X4230-A, there is no differentiation between manual or electrical switch-off.
Technical Data
| Nennspannung |
AC 240...415; DC 24...130 |
|---|---|
| Nennstrom | 1...8A |
| Polzahl | single pole |
| Montage | rail mounting |
| Anschlüsse | screw terminals |
| Betätigung | toggle/baton |
| Hilfskontakte | |
| Spritzwasserschutz | |
| Beleuchtung | |
| Lebensdauer | 20.000 |
| Schaltvermögen Icn | |
| Certificates | UL 489 |
Applications
- Automation
- Chemical, Oil & Gas
- Mechanical engineering
- Telecom & Datacom
Downloads
Declarations of conformity | 5
- RMI CMRT 1.5 MB
- RMI EMRT 1.7 MB
- Statement on per- and polyfluoroalkyl substances (PFAS) 180.1 KB
- REACH 264.1 KB
- TSCA Letter of Confirmation 244.1 KB
