Type 1410-F1
~ 24 mm
Description

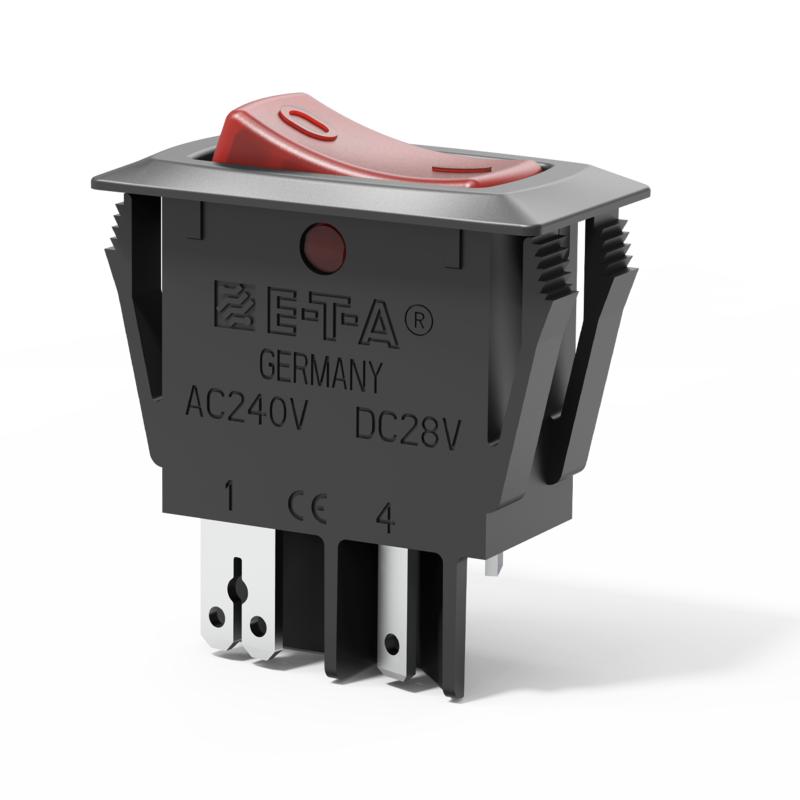

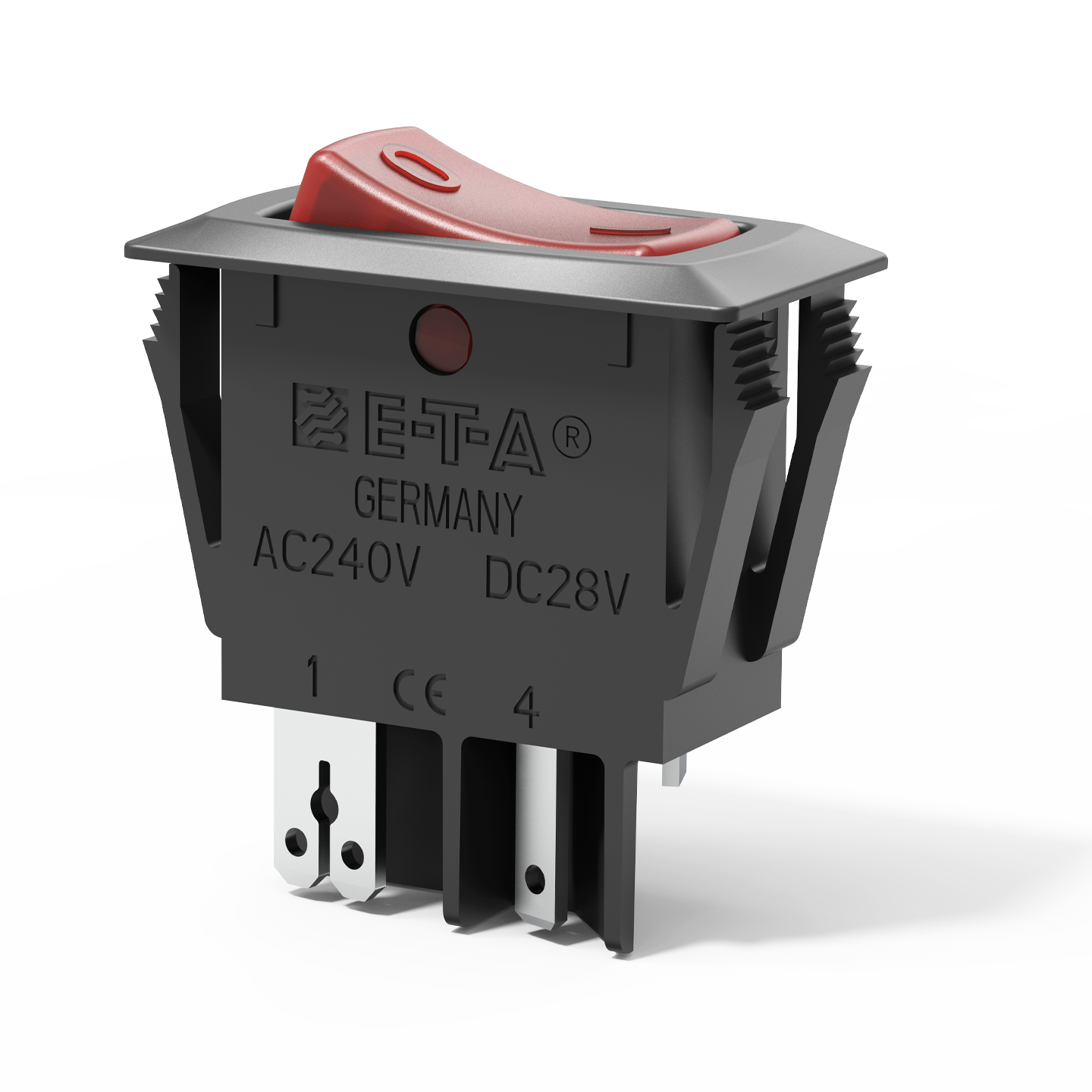

Miniaturised single pole rocker switch/thermal circuit breaker combining ON/OFF switching and extremely fast overload performance in a single component (S-type TO CBE to EN 60934/IEC 934). Under overload conditions an internal neon (filament bulb for low voltages) illuminates to give a clear signal of the tripped status of the mechanism and thereby the cause of power interruption, suffix -B. Alternatively the illumination can be conventionally wired to indicate the ON status of the device, suffix -E. Returning the rocker switch through the OFF position and back ON will reset the mechanism and restore the supply. Largely temperature-insensitive.
Complies with CBE standard EN 60934 (IEC 60934).
Technical Data
| Voltage rating |
|
|---|---|
| Current ratings |
from 0.63 A up to 10 A |
| Number of poles | single pole |
| Mounting method | flange |
| Terminal design | blade terminals |
| Actuation | rocker |
| Auxiliary contacts | without auxiliary contacts |
| Water splash protection | without water splash protection |
| Illumination |
with illumination without illumination |
| Typical life |
30,000 operations for IN<= 6.3 A AC/DC 10,000 operations for IN > 6.3 A AC 3,000 operations for IN > 6.3 A DC 500 break operations at 2 x IN |
| Interrupting capacity Icn |
0.63...2 A: 12 x IN 2.5...8 A: 8 x IN AC, max 50 A 10 A: 6 x IN AC 3.15...10 A: 10 x IN DC |
| Certificates | CSA, UL |
Applications
- Household, Hobby & Garden Equipment
- Lighting technology
- Medical technology
- Minus DC 48 V
- Telecom & Datacom
