Type 1140-G15

~ 64 mm

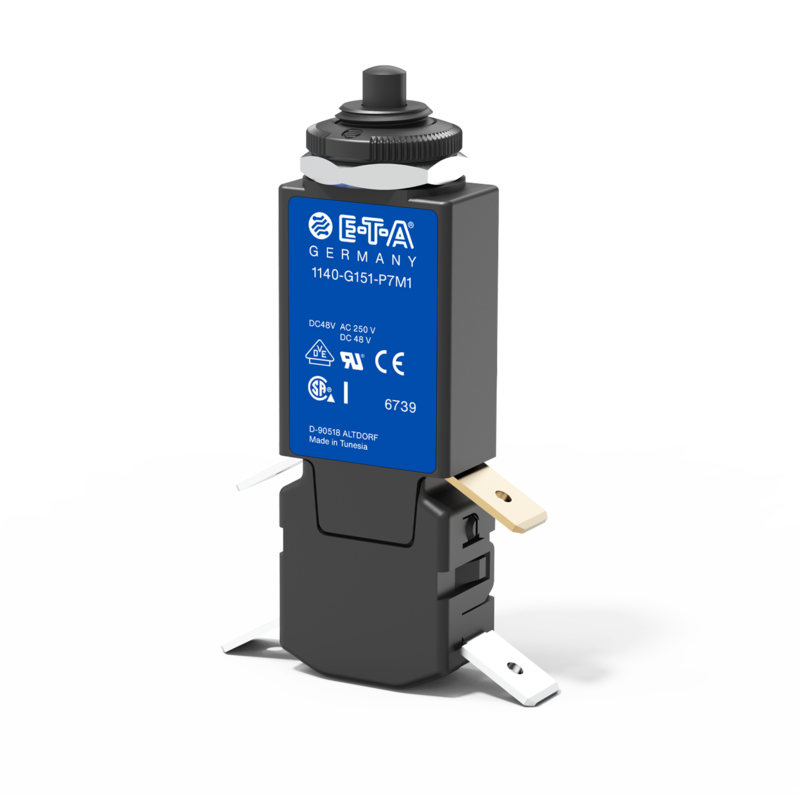

Typ 1140-G15 von E-T-A: Zweipoliger Schutzschalter mit einem thermisch geschützten Pol.

Description

Miniaturised double pole thermal circuit breaker with push-to-reset tease-free, trip-free, snap action mechanism (R-type TO CBE to EN 60934). Threadneck panel mounting. Suitable for line and neutral switching - the thermal actuator operating on one pole simultaneously opens both poles under overload conditions.

Approved to CBE standard EN 60934 (IEC 60934).

Also available with XR38 PEM.

Technical Data

Voltage rating
  • AC 240 V
  • DC 48 V
  • UL/CSA: AC 250 V
  • UL/CSA: DC 50 V
Current ratings from 0.05 A up to 16 A
Number of poles double pole
Mounting method threadneck
Terminal design blade terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection with water splash protection
without water splash protection
Illumination without illumination
Typical life 0.05...3 A: 3,000 operations at 2 x IN, resistive

3.5...8 A: 1,000 operations at 2 x IN, resistive

10...16 A: 100 operations at 2 x IN, inductive
Interrupting capacity Icn 0.05...3 A: 6 x IN

3.5...8 A: 8 x IN

9...16 A: 120 A
Certificates VDE, CSA, UL

Accessories

Order number Description
X20128501

splash cover transparent

Y30019201

hex nut

Y30711702

knurled nut

Applications

  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Medical technology
