Type 201

~ 80 mm

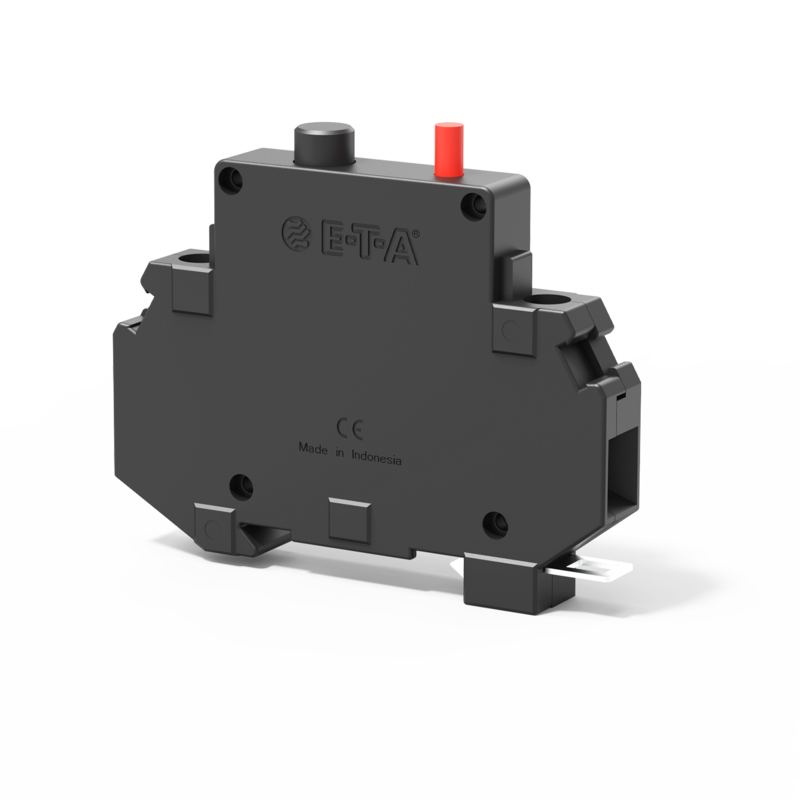

Typ 201 von E-T-A: ist ein einpoliger, thermischmagnetischer Schutzschalter mit Handauslösung für Tragschienenmontage.

Description

Single pole thermal-magnetic circuit breaker with tease-free, trip-free, snap action mechanism and two button operation (M-type TM CBE to EN 60934). Featuring a narrow profile housing, recessed terminals, standard EN rail mounting, and precision CBE performance.

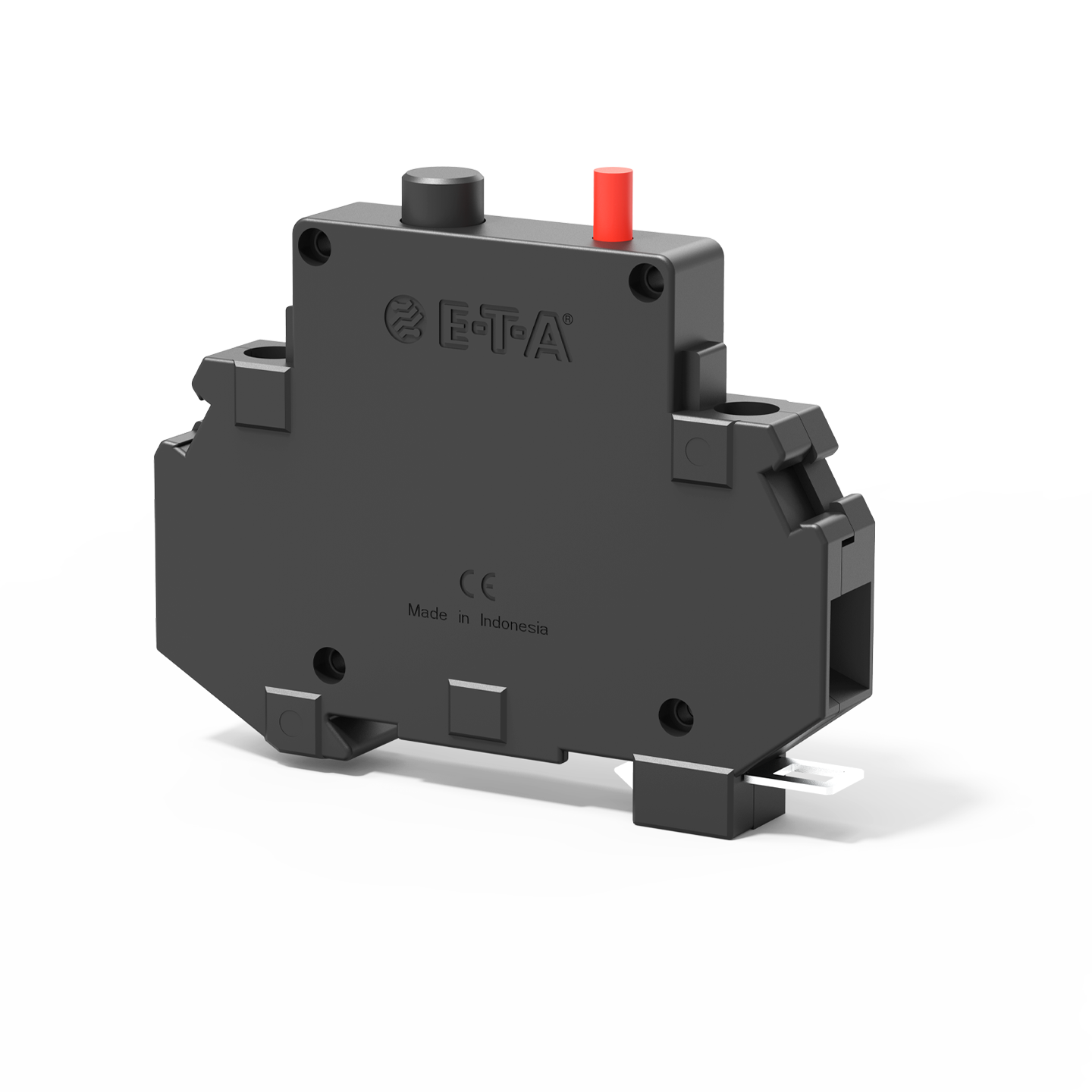

E-T-A’s 201 is a single pole, thermal-magnetic circuit breaker with manual release button for rail mounting. It is a very compact circuit breaker which is ideally suited to basic applications without auxiliary contacts. The 201 can be switched on with a black push button. The separate red manual release button serves for manually switching off. In the event of tripping due to overcurrent or short circuit as well as after manual disconnection, the breaker can be reset by means of the black push button. Resettability ensures a significantly higher system availability than conventional blade fuses.

Approvals and standards

  • IEC/EN 60934
  • UL 1077
  • CSA



Approved to CBE standard EN 60934 (IEC 60934).

Technical Data

Voltage rating
  • AC 240 V (50/60 Hz)
  • DC 65 V
  • UL/CSA: AC 250 V
  • UL/CSA: DC 80 V
Current ratings from 0.05 A until 16 A
Number of poles single pole
Mounting method rail mounting
Terminal design screw terminals
Actuation manual release
push button
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination without illumination
Typical life 5,000 operations at 1 x IN, inductive

5,000 operations at 2 x IN, resistive
Interrupting capacity Icn 0.05...0.8 A: self-limiting

1...2 A: 200 A

2.5...16 A: 400 A
Certificates VDE, CSA, UL

Accessories

Order number Description
X21058901/02

Connector bus links -K10

01 = 2.5 mm2 black



02 = 1.5 mm2 brown

X22254001

busbar

Y30785101

plug-on cap

Y30855101

supply terminal

Applications

  • (Steel industry)
  • Automation
  • Automobile production
  • Chemical, Oil & Gas
  • Mechanical engineering
  • Minus DC 28 V
  • Minus DC 48 V
  • Minus DC 72 V
  • Pharmaceutical & Food
  • Telecom & Datacom
